Vet Cattle Crush

CATTLE HANDLING logo new

Enquire about our Flexible Payment option

Vet Cattle Crusher & Cattle adjustable ramps @ Affordable prices

“Visit our online store for great deals “

     FULL ACCESS VET CATTLE CRUSH MADE IN AUSTRALIA        FULL ACCESS VET CATTLE CRUSH (IMPORTED)

         Specifications

                                                                                                                         MADE IN AUSTRALIA (HALLAM, VIC)

Hobby farmers (Vet Cattle Crush)

We deliver Nation wide through our growing distribution network ,our cattle handling equipment  meets the highest standards @ affordable prices. give us a call and save.

PLEASE ENQUIRE

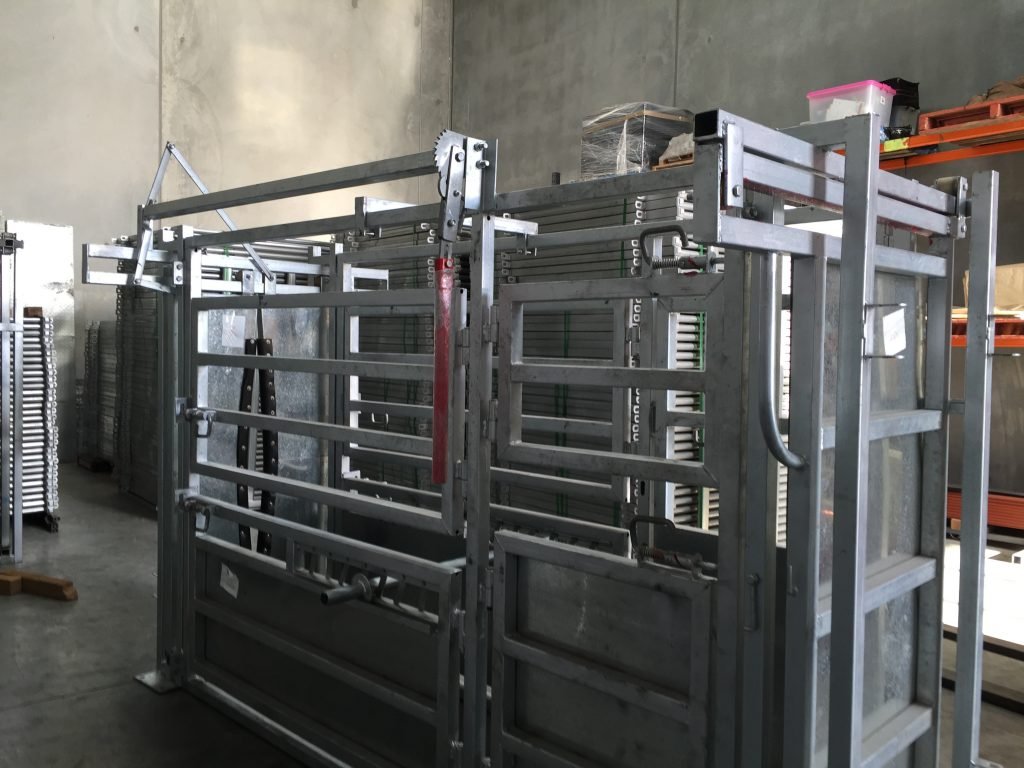

Heavy duty full access vet cattle crush ( Hobby Farmers)
4 large side gates
2 smaller vet doors
Base checker plate: 3mm thick ( floating removable flooring @ additional cost)
Base lugs
Weigh scale option at additional cost  (PLEASE CLICK  HERE TO REFER TO OUR CATTLE  DIGITAL SCALE BROCHURE)
Heavy duty Self-locking slam locks on all gates
Heavy duty hinges on all the gates
Rear sliding gate with lock
Head bail section rubber cladded  to minimise bruising / RIGHT & LEFT SIDE  OPERATING OPTION @ ADDITIONAL COST
Bottom gates sheeted with hdg sheet 1.5mm thick
Vet access bottom doors swings in to the crush and are sheeted with 1.5mm gal plate, VET SIDE ACCESS PROVIDED
Locking mechanisms with one leaver at the rear of the crush operates the head lock (easy handling for a one man operator)
HDG after fabrication

Dimensions: 3050(L) X 2010(H) X 1520(overhead width) X 800mm (entrance inner width)
Material: 50 X 50 X 2mm thick square tube
Bottom gates sheeted with hdg sheet 1.5mm thick
Floor checker plate 3mm thick  ( floating removable flooring @ additional cost)
Finish: HDG after Fabrication

1 year warranty  (Please refer to our maintenance/ care manual)

_____________________________________________________________________________

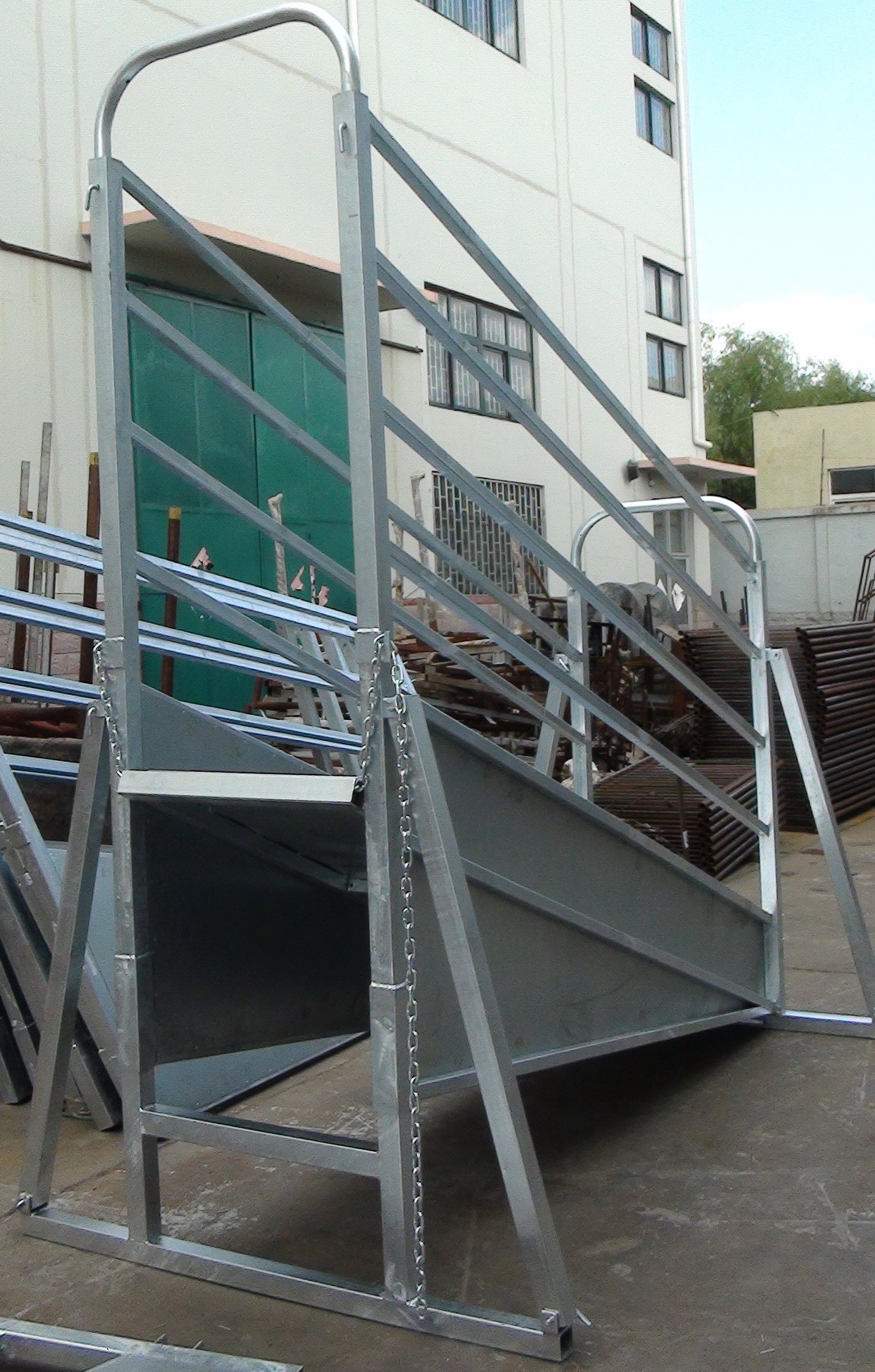

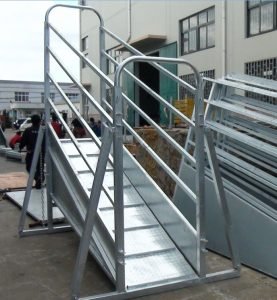

                                                   Heavy duty cattle adjustable ramps

PLEASE READ THE SAFETY OPERATIONS BROCHURE

Cattle ramp: 3.2m length.
Overall height 3,242 mm . Inner width: 735mm
Adjustable ramp height: from 585mm-1500mm.

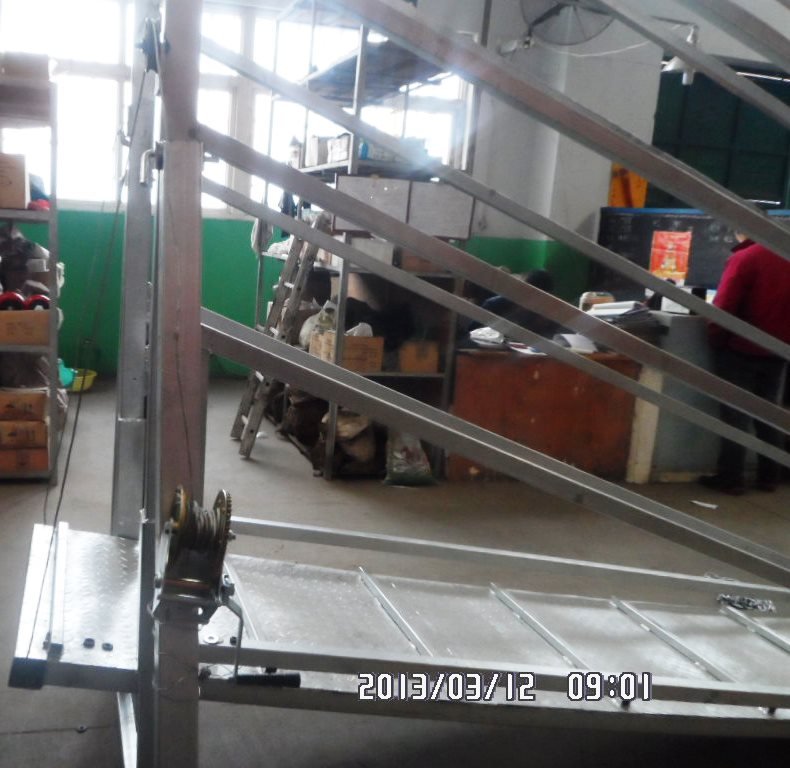

Winch Mechanism with 10mm wire rope HDG .Eliminates manual lifting
Frame: 50mm x50mm x 2.00mm
Side panels: 6x 50x50x2.00mm (side gal sheeting 1.5mm thick)
Floor: HDG 3mm checker plate with steel struts for better grip
HDG after fabrication

Distributors wanted:

CLICK HERE FOR CATTLE HANDLING BROCHURE



Enquire about our latest deals CLICK HERE FOR CRUSH BROCHURE CLICK HERE FOR NBS CATTLE RAMP BROCHURE  CLICK HERE FOR RESELLER LIST CLICK HERE FOR WEIGH SCALE BROCHURE

PLEASE ENQUIRE HERE .
